Pre-connection fast connector C,PATENT product,can factory prefabrication with 5mm round cable or 2x3 drop cable
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

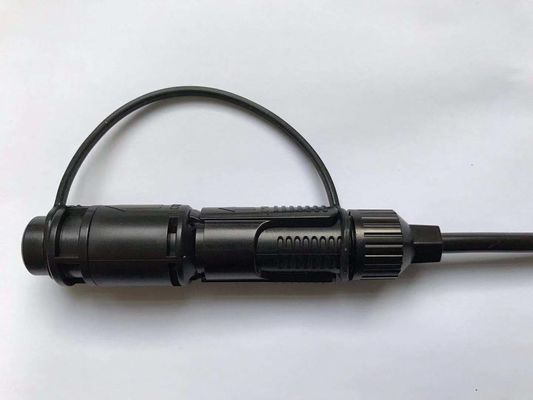

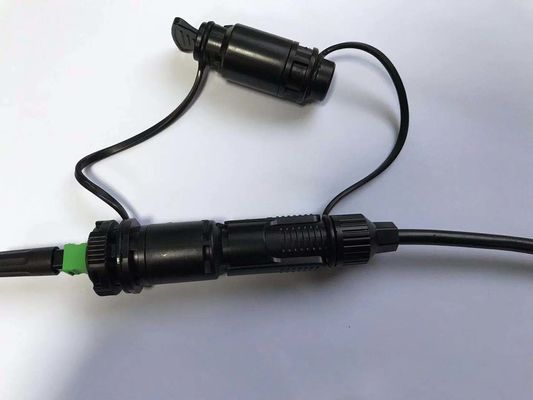

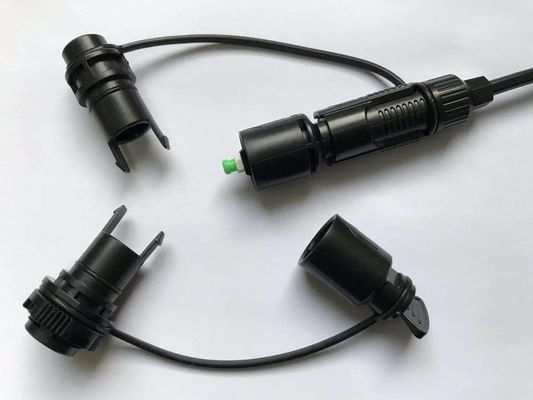

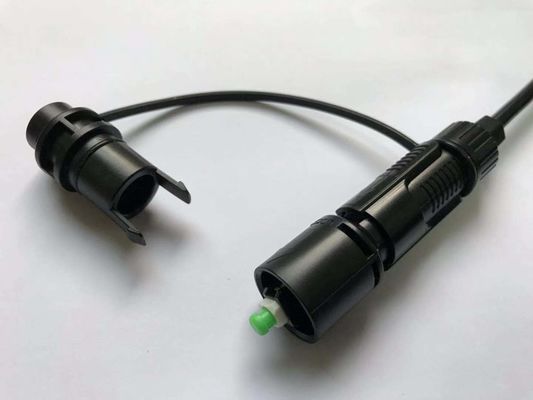

Fiber Optic Connector Prefabricated:
This type of fiber optic connector can easily and quickly convert all kinds of conventional prefabricated SC tail fibers and jumpers into prefabricated plugs.
After the optical fiber connector is inserted into the main sheath, the outer sheath and the corresponding adapter can be rotated and clamped to realize the light function.
This fiber connector requires factory prefabrication.
| ITEM | Specifications |
| Applicable adapter type | SC/APC |
| Adapter fiber type | Single mode |
| Test wavelength | 1310nm, 1550nm |
| Insertion loss | Typical data ≤0.15dB,Data≤0.20dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Plug performance | Insert and remove of 1000 times the data ≤0.20dB |
| Number of channels | Single mode |
| Frame material | plastic |
| Sleeve material | ceramics |
| Operating temperature | -20℃to +70℃ |
| storage temperature | -40℃to +85℃ |
