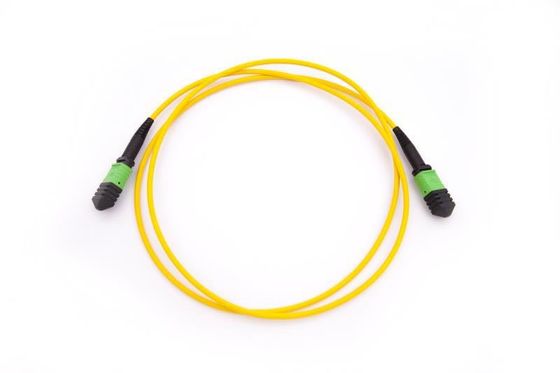

MPO/MTP fiber optic patch cord/cable/jumper
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
High quality MPO/MTP fiber optic patch cord/cable/jumper
1,Product Description
MPO/MTP optical fiber patch cord, Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standard
2,Application
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
3,Feature
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Standard: Telcordia GR-326-CORE
4,Specification
| Mode | SM | MM |
| Polish | UPC/APC | PC |
| Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
| Return Loss |
≥50DB(PC) ≥60DB(APC) |
≥30dB |
| Interchangeability | ≤0.2dB | |
| Repeatability | ≤0.1dB | |
| Durability | ≤0.2dB typical change, 1000 matings | |
| Tensile Strength | > 10kg | |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |
5,Ordering options
| Boot (cable size) | Boot Color | Fiber Type | Cable number | Ferrule | Length |
|
0.9mm 2.0mm 3.0mm |
Black Biege Blue Gray White Yellow |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
PC APC |
Customized |
