2018 New!GFS-8X,MAX 8 cores,313*195*120,IP65~68,pre-connection fiber distribution box,fiber termination box,1x8 PLC

China 2018 New!GFS-8X,MAX 8 cores,313*195*120,IP65~68,pre-connection fiber distribution box,fiber termination box,1x8 PLC supplier
2018 New!GFS-8X,MAX 8 cores,313*195*120,IP65~68,pre-connection fiber distribution box,fiber termination box,1x8 PLC supplier 2018 New!GFS-8X,MAX 8 cores,313*195*120,IP65~68,pre-connection fiber distribution box,fiber termination box,1x8 PLC supplier 2018 New!GFS-8X,MAX 8 cores,313*195*120,IP65~68,pre-connection fiber distribution box,fiber termination box,1x8 PLC supplier

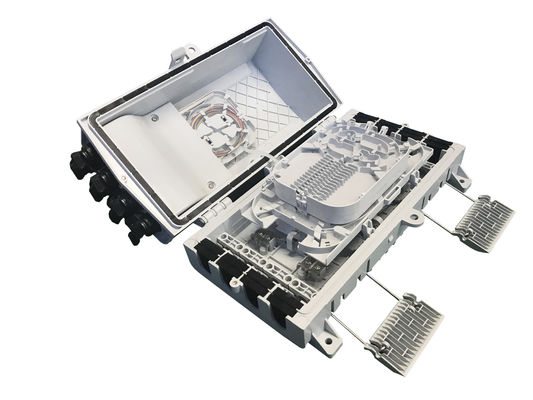

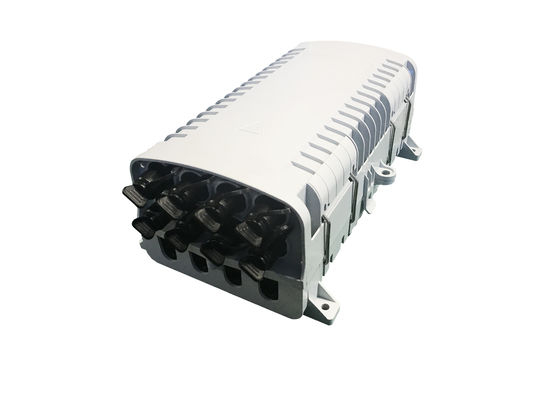

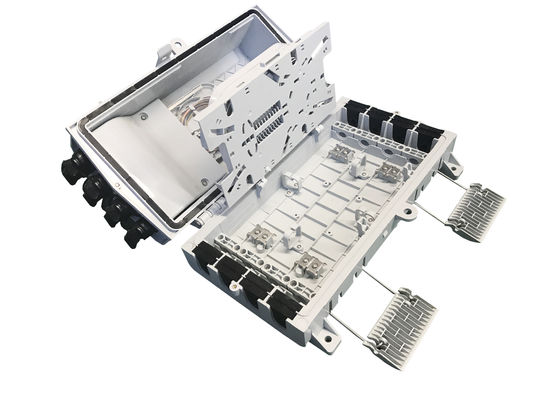

Large Image :  2018 New!GFS-8X,MAX 8 cores,313*195*120,IP65~68,pre-connection fiber distribution box,fiber termination box,1x8 PLC

Product Details:

Place of Origin: CHINA
Brand Name: KL
Model Number: GFS-8X

Payment & Shipping Terms:

Minimum Order Quantity: 100
Packaging Details: CARTON
Delivery Time: 15 WORK DAYS
Payment Terms: L/C, T/T
Detailed Product Description

1. Description:

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



2. Features:

1. Total enclosed structure.

2. Material: PP, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

5. Distributionpanel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.



3. Specification:

1. Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85% (+30℃)

Atmospheric pressure: 70KPa~106Kpa

2. Main technical datasheet

Insertion loss: ≤0.15dB

UPC return loss: ≥50dB

APC return loss: ≥60dB

3. Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 22018 New!GFS-8X,MAX 8 cores,313*195*120,IP65~68,pre-connection fiber distribution box,fiber termination box,1x8 PLCMΩ/500V (DC); IR≥22018 New!GFS-8X,MAX 8 cores,313*195*120,IP65~68,pre-connection fiber distribution box,fiber termination box,1x8 PLCMΩ/500V.

The voltage resistance between the grounding device, and the boxand its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V



4. Configuration table:

Table 1 Model and configuration

Model Description

Size (Pic 1)

A*B*C

Max Capacity Installation Size(Pic 2) Into the largest cable diameter (mm) Cable outlet size(mm)
D*E F*G
GFS-8X Splitter Box 313*195*120 8 SC/APC 175.5*260.2 52*177.6 5~16 /
GFS-8X-1 Splitter Box 313*195*120 16 175.5*260.2 52*177.6 5~16 2*3
GFS-8X-2 Connector Box 313*195*97.8 72 175.5*260.2 52*177.6 5~16 5~16
