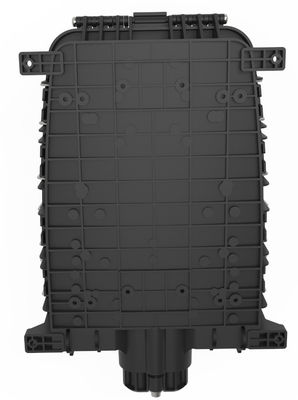

Pre-connectorized Optical Fiber Distribution Box GFS-16QX IP68 378*255*136mm 16 pre-connected adapter aerial-mount
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PP Or PC+ABS. | COLOR: | BLACK OR GREY OR CUSTOMIZATION |
|---|---|---|---|
| IP: | 68 | CAPACITY: | Max 96CORES |
1.1 Description
Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
| Production type | Classification |
| GFS-16QX | Optical fiber cable distribution box |
2. Characteristics
2.1. Advanced structure design, easy operation and reasonable routing.
2.2. Material: PP or PC+ABS.
2.3. Moisture proof, waterproof, dust-proof, anti-aging.
2.4. Protection level up to IP68.

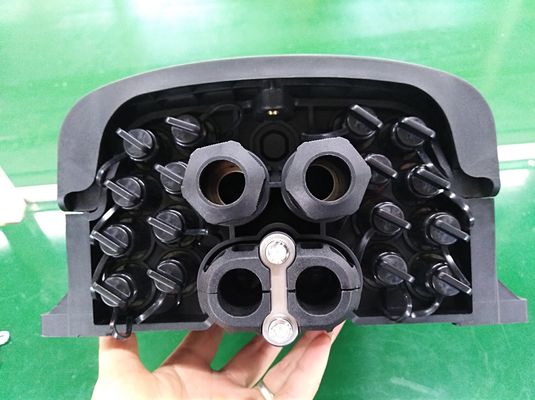

2.5. 1 oval optical cable entry, 2 branch optical cable entries and 16 pre-connected adapters.
2.6. 2 type splice trays optional.

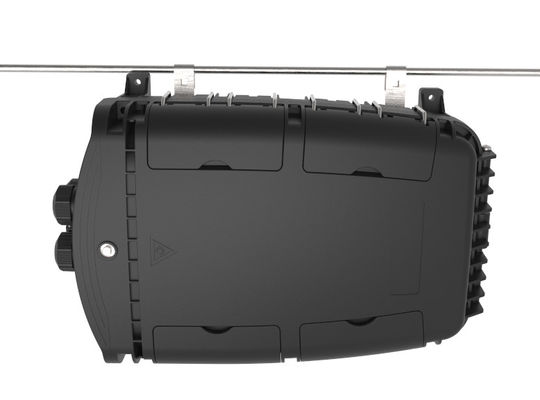

2.7. Installation method: pole-mounted, aerial-mounted, wall-mounted.
3.1 Mechanical specifications
| Item | Specifications | Remark |
| External dimension(mm) | 378*255*136(A*B*C) | |
| Installation hole position(mm) | 215*266*239(D*E*F) | |
| Color | Black | Customizable |
| Size and quantity of optical cable hole | 1 oval optical cable entry, 2 branch optical cable entries and 16 pre-connected adapters | |

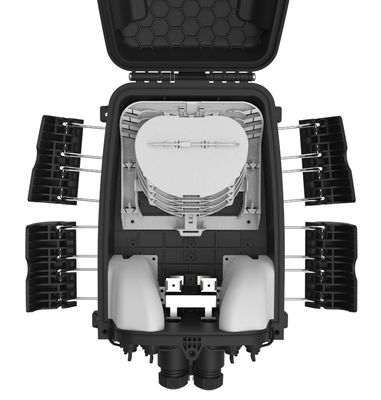

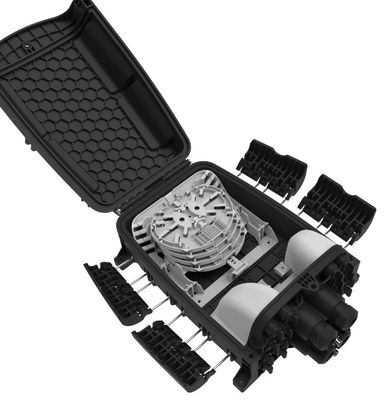

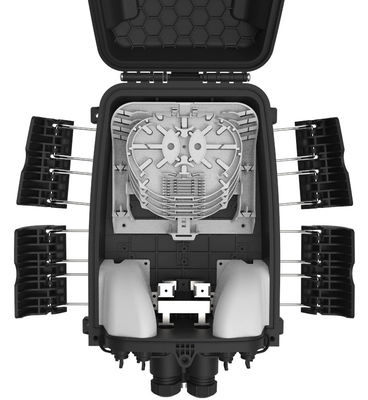

| Capacity(Max) | 4 type A(48 cores) or 8 type B (64 cores) or 8 type C(96 cores) melt fiber discs | It can be combined or selected |
| Into the largest cable diameter (mm) | ᴓ15 | |
| Maximum size of bifurcation hole (mm) | ᴓ12 | |
| IP protection level | IP68 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 48 h |
