heating manual fiber stripper fiber optic Manual stripping machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

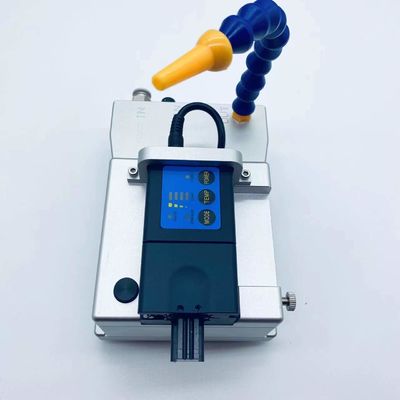

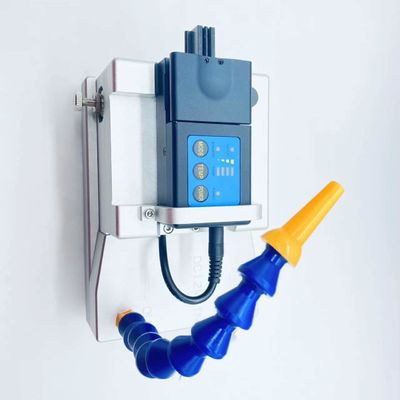

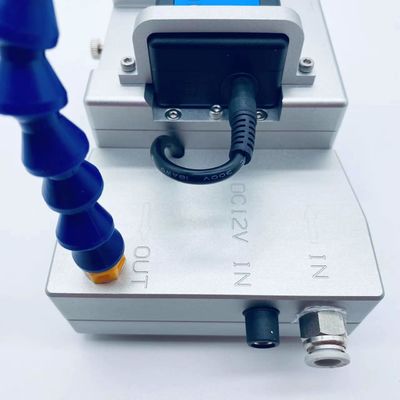

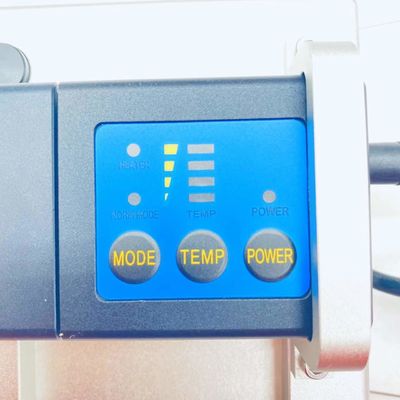

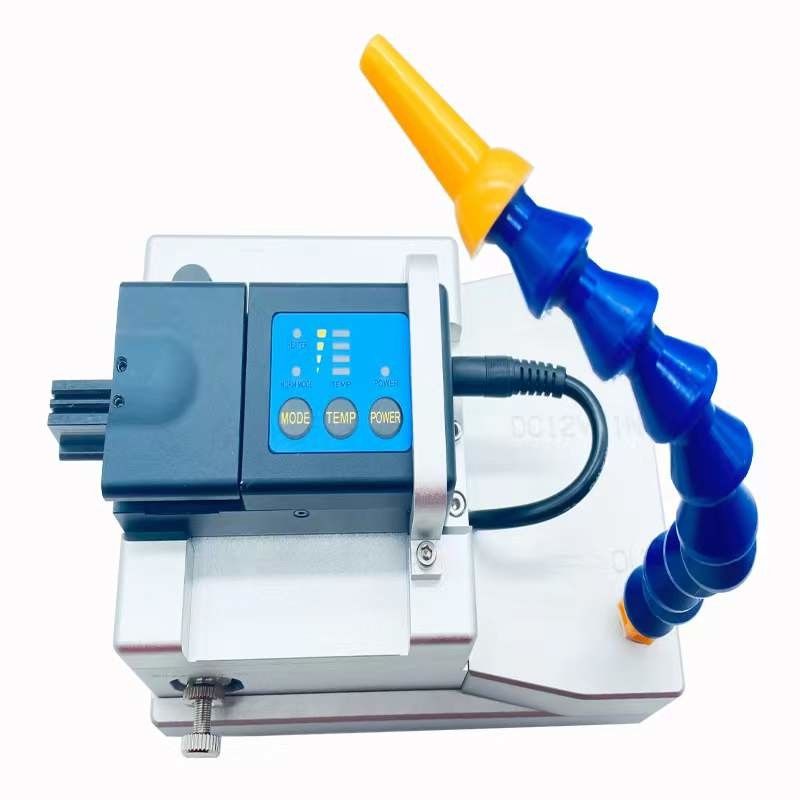

heating manual fiber stripper fiber optic Manual stripping machine
The product with compact and lightweight design, easy to use and reliable. It works by Vertical stripping, the force is small and stripping quality is high. The blade is durable and easy to replace. The Fiber Hot Jaket Remover uses manual operation and hot stripping methods, to ensure no damage to the fiber, easy and fast to strip coating. This product is also available with fiber stripping and window stripping the overall functionality.
Product specifications and main technical parameters
| main technical parameters | |
| Stripped Length | Max 30mm |
| Heating Mode | Normal mode |
| Power-saving mode | |
| Temperature Setting | Four Temperature: 60℃ 80℃ 100℃ 120℃ |
| Power Supply | DC 12V2A power supply using the adaptor conversion |
| Dimensions | 92.5(L) X 46(D) X 28.5(H) mm |
| Weight | 260g |
| Environmental requirements | Humidity below 85% ％; T:-10℃-40℃ |
◆ Fiber choice
| For fiber | |
| Fiber materials | Quartz glass |
| Coating material | UV hardening resin,hytrel |
| Fiber count and coating thickness | ≤0.9mm |
| Fiber diameter | 80-400μm |
◆ standard
| Name | Specification | Quantity |
| Manual fiber stripper | JX-240 | 1 |
| Blade(installiert) | JX-2C | 2 |
| Power adapters | AC220/DC122A | 1 |
| Operating Manual | 1 |
