Installation Envioronment: | Indoor Or Outdoor | Installation Way: | Wall Mounted Or Pole Mounted |
---|---|---|---|
Capacity: | 48 Core | Type: | Normal Type |
Cable Inlet: | Bottom In And Bottom Out | ||
Highlight: | optical fiber termination box,fiber optic distribution box |

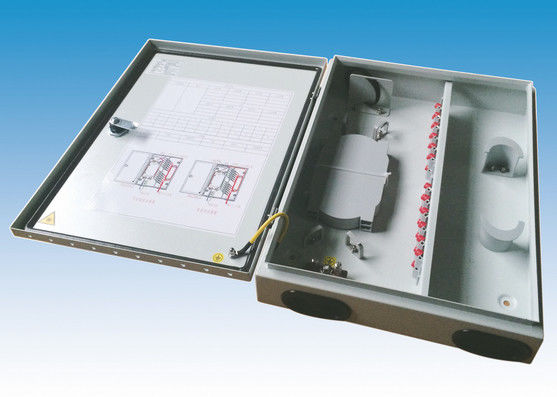

Normal Type Optical Fiber Distribution Box 48 CORE For FTTB FTTO
GF-KJW(N) series optical fiber distribution box is an optical network termination and distribution device,has the function of splicing,termination,jumping,distribution and splitting.Applications:FTTH,FTTD,FTTB,FTTO
Technical parameters:
Operation Conditions:
Work Temperature: -25℃~+65℃
Relative humidity:≤95%
Atmospheric pressure: 70KPa~106 KPa
Photoelectric property
Insertion loss: ≤0.35dB
return loss:PC≥45 dB UPC≥50dB
withstand voltage between grounding device and the box ≥3000V(DC)/1min (no puncture,no flashover)
Isolation resistance between grounding device and the box>2×104MΩ/500V(DC)
Optical Fiber distribution box(Normal type)
Cable insert way:bottom in and bottom out
Installation environment:Outdoor and Indoor
Good compatible performance,optional capacity,splitter cassette can be installed if you need.
Easy operation,The box with the muti function of cable fixing,splicing,jumping,termination ,ect.Usualy with outdoor cable or drop cable outlet.
NO. | TYPE | SIZE | Installation method | remark |
1 | GF-KJW(N)-12 | 310*320*85 | Wall-mounted(outdoor or indoor) | special accessories for pole-mounted |
2 | GF-KJW(N)-24 | 430*320*85 | Wall-mounted(outdoor or indoor) | special accessories for pole-mounted |
3 | GF-KJW(N)-48 | 440*360*130 | Wall-mounted(outdoor or indoor) | special accessories for pole-mounted |
