32 Rack Fiber Optic PLC Splitter Termination Box With SC - APC Adapte
GPX300-ZD patch panel(optical termination box) is used in fiber optical termination distribution device,it has the function of small capacity cable access,fixing ,tripping and protection,fiber splicing and protection,pigtails storage,management,distribution and splitting.It is widely used in PON technology in FTTX fiber access network.This product is easy for installation,easy for cable management and capacity enlarge,reduce the project construction cost.
3.1 Dimension
NO | Model No. |
dimension A*B*C(mm) |
capacity | remark |
1 | GPX300-ZD/C24 | 482*320*44 | 24cores | Installation size 465mm |
2 | GPX300-ZD/C48 | 482*320*88 | 48cores | Installation size 465mm |
3 | GPX300-ZD/C96 | 482*320*175 | 96cores | Installation size 465mm |
(PS:If use LC duplex flange can achieve double capacity)
3.2Cable entry:Rear cable entry options.
3.3 Operation Conditions:
Work Temperature: -40-+60°C
Relative humidity:≤95%(+40°C)
Atmospheric pressure: 70~106 KPa
3.4Life time:more than 25 years.
3.5When fiber laying in this device,no matter where to make a turn,the bend radius can’t be less than 30mm.For bending insensitivity fiber, the bend radius can’t be less than 10mm.
3.6Fiber connector insertion loss≤0.3dB;return loss≥50dB.
3.7 Isolation resistance between the patch panel metal parts and cable metallic strengthen member,each cable metal part,cable metal parts and the earth>2×104MΩ(test voltage 500VDC).
3.8 Withstand voltage between the patch panel metal parts and cable metallic strengthen member,each cable metal part,cable metal parts and the earth≥3KV(DC)/1min (no puncture,no flashover)
4. Product formation and appearance
4.1 Product formation:Metal case body,cable access fixing stripping device, splice cassette,adaptors,12 cores bundle pigtails,cable management loop and installation accessory.

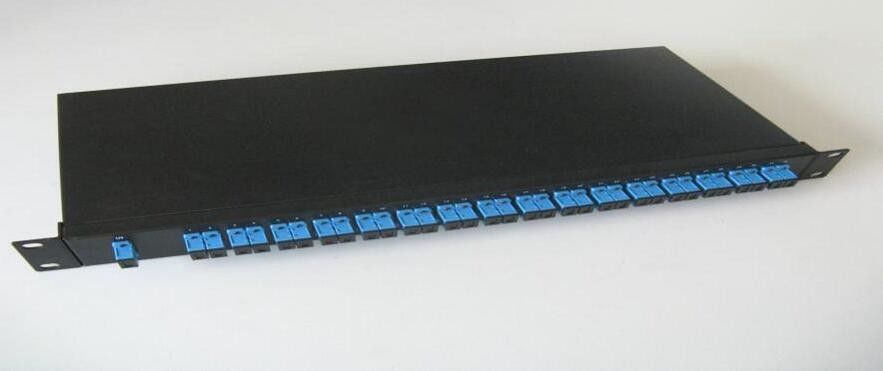

4.2Product appearance:(32 cores)
