laser module 650nm laser diode 2.5-4mW,3~5V,dia 6.0mm,red&green light,PCB 6.0mm,brass material

Certification
Good quality ODF Optical Distribution Frame for sales
Good quality ODF Optical Distribution Frame for sales
I'm Online Chat Now

laser module 650nm laser diode 2.5-4mW,3~5V,dia 6.0mm,red&green light,PCB 6.0mm,brass material

China laser module 650nm laser diode 2.5-4mW,3~5V,dia 6.0mm,red&green light,PCB 6.0mm,brass material supplier

Large Image :  laser module 650nm laser diode 2.5-4mW,3~5V,dia 6.0mm,red&green light,PCB 6.0mm,brass material

Product Details:

Place of Origin: CHINA
Brand Name: JSSN
Certification: Rosh,EN60825
Model Number: HWN-90206024

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50k/day
Detailed Product Description

Various Size Customization Sample laser module 405nm 808nm laser diode module laser module

laser module 650nm laser diode 2.5-4mW,3~5V,dia 6.0mm,red&green light,PCB 6.0mm,brass material



Application area: Laser modules can be widely used in various industries. For example: stage projector, laser therapeutic apparatus, laser cosmetic apparatus, laser indicator, laser pen bar code scanner, level instrument, electric tool, building measurement, burglar alarm system, laser thermometer, industrial detector, processing positioning, military aiming, laser guidance, aviation industry, etc. Experimental laser source, children's toys, etc. Automation design and other industries.

laser module 650nm laser diode 2.5-4mW,3~5V,dia 6.0mm,red&green light,PCB 6.0mm,brass material



item spec remark

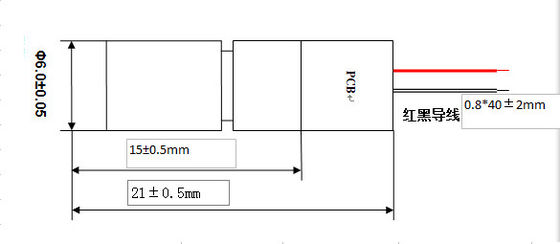

(Outside size) 6.0x15.5x21mm Industrial grade
(Peak wavelength) 650nm
(Optical power) 2.5-4mW
(Operating voltage) 3-5V
(Operating current) 1≤35mA
(Spot runs range) >200m
(Spot diameter at 11millimetre) <1mm 11mm Range Testing
wire length 40mm
(Operating temperature) 450℃∽0℃
(Storage temperature) 60℃∽-36℃
life 5000∽10000H
special requirement PCB 6.0mm
